Gas Detector Multi Gas Dedected Segment Code LCD Display Automatically test and Calibrate After Power-on

বেসিক ইনফরমেশন
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: SAFEGAS
সাক্ষ্যদান: IECEX/ATEX/EMC/CE
মডেল নম্বার: মিকমেটা
ন্যূনতম চাহিদার পরিমাণ: 1
মূল্য: আলোচনাযোগ্য
প্যাকেজিং বিবরণ: কার্টন (22*16*11 সেমি)
ডেলিভারি সময়: 5-7 কাজের দিন
পরিশোধের শর্ত: টি/টি
যোগানের ক্ষমতা: প্রতি মাসে 3000 টুকরা
বিস্তারিত তথ্য
গ্যাসের ধরণ: আবেদন অনুযায়ী নির্দিষ্ট নীতি: আবেদন অনুযায়ী নির্দিষ্ট
পরিমাপ পরিসীমা: আবেদন অনুযায়ী নির্দিষ্ট রেজোলিউশন: আবেদন অনুযায়ী নির্দিষ্ট
প্রতিক্রিয়া সময় (T90): ≤30s ইউনিট: পিপিএম, এমজি/এম³ একটি কী দ্বারা স্যুইচ করা যেতে পারে এবং ঘনত্বের মানটি স্বয়ংক্রিয়ভাবে সিস্টেম দ্বা
প্রদর্শন: সেগমেন্ট কোড LCD ডিসপ্লে ক্রমাঙ্কন প্ল্যাটফর্ম: পরিবর্তন, ফাংশন টেস্টিং এবং ক্রমাঙ্কন অপারেশনগুলি ডি কেএম-মাইমেটা ডকিং স্টেশনে সম্পাদন করা যেতে পারে
ডেটা রেকর্ড: 1000 সেট ডেটা রেকর্ড এবং 100 সেট ইভেন্ট রেকর্ড
বিশেষভাবে তুলে ধরা:

multi gas detector with LCD display

,

automatic calibration gas detector

,

multi gas detector with segment code


পণ্যের বর্ণনা

Product Name: MicMeta Diffusion Gas Detector
Product Overview:

MicMeta is an IECEx/ATEX/EMC certified multi gas detector. It’s light weight, small size. The standard gas type is multi 4 (CO H2S O2 LEL) gases and also support hundreds of selectable gases. It is with standard mandown alarm and data logging function, optional Lora and Bluetooth wireless data transmission, user is able to access data easily.

Product Advantage:
  1. IP66/IP68 water & dust resistant and 1.5 meters drop resistant case, rugged and durable designs
  2. Compact, lightweight, small size with back clip, ergonomic and wearable design
  3. Standard man down alarm, password protection, ID identification function
  4. Real time value, TWA, STEL, MAX, MIN multiple numerical display
  5. With self-test function, which can improve safety by automatic self-test
  6. Standard 1000 data records and 100 events records
  7. Support firmware upgrade remotely
  8. With docking station to perform daily bump test and calibration (Optional)
  9. Wireless data transmission including Lora, Bluetooth (Optional)
  10. Low power consumption, battery run time is upto 24 hours per charge
Technical Parameters:
Working method Diffusion
Gas type Specified according to application
Principle Specified according to application
Measure range Specified according to application
Resolution Specified according to application
Response time (T90) ≤30S
Automatically test and calibrate after power-on Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit ppm, mg/m³ can be switched by one key, and the concentration value is automatically converted by the system
Display Segment code LCD display
Calibration platform Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional)
Data Record 1000 sets data records and 100 sets events records
Alarm 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable
Battery 3.7V rechargeable lithium battery, battery capacity 2300mA
Wireless transmission Bluetooth transmission function (optional), Lora transmission function (optional)
Working hours Standby time 24h, charging time <6h
Certification (EU regulations) 2004/34/UE (ATEX)
Explosion-proof grade IECEx: Ex ia IIC T4 Ga, Ex ia I Ma, ATEX II 1G Ex ia IIC T4 Ga, Ex ia I Ma
Protection grade IP66/IP68
Working temperature -20°C ~ 55°C
Working humidity 0-95%RH (non-condensing)
Working pressure 86~106Kpa
Size 45×58×116mm (length × width × height)
Weight 240g (with lithium battery)
Product Images

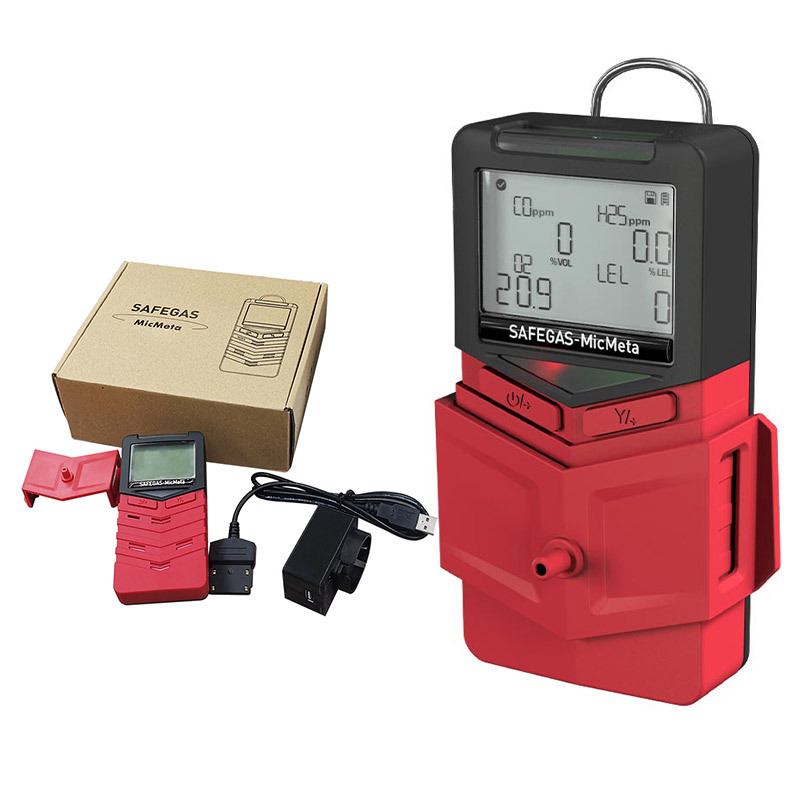

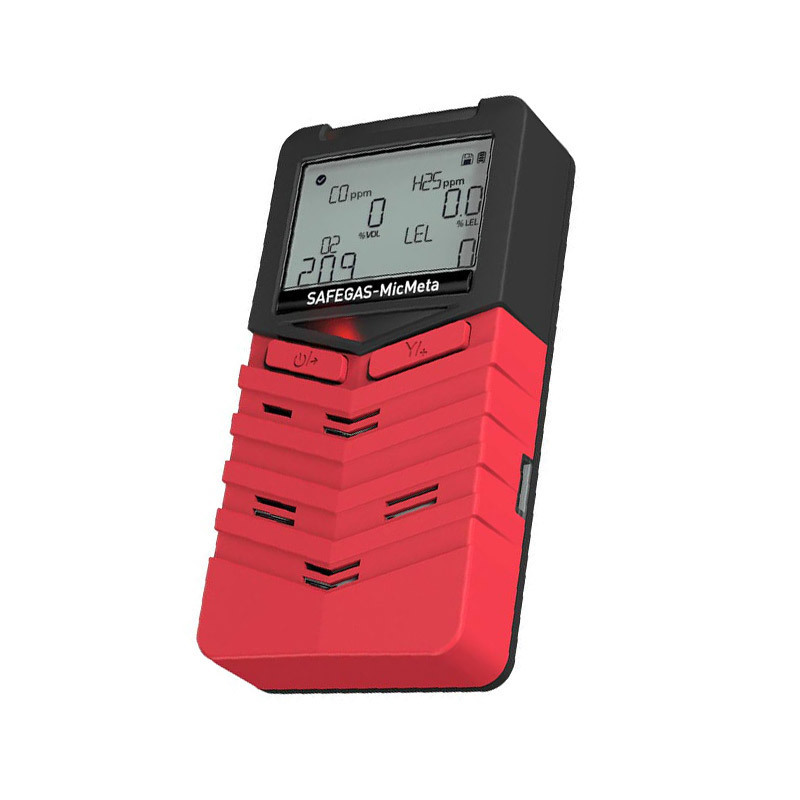

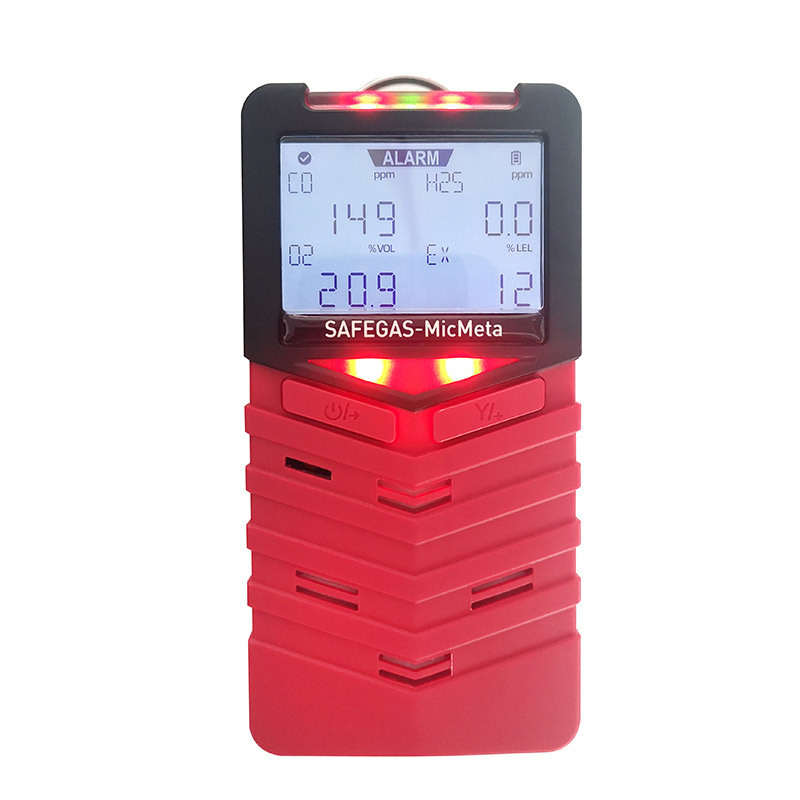

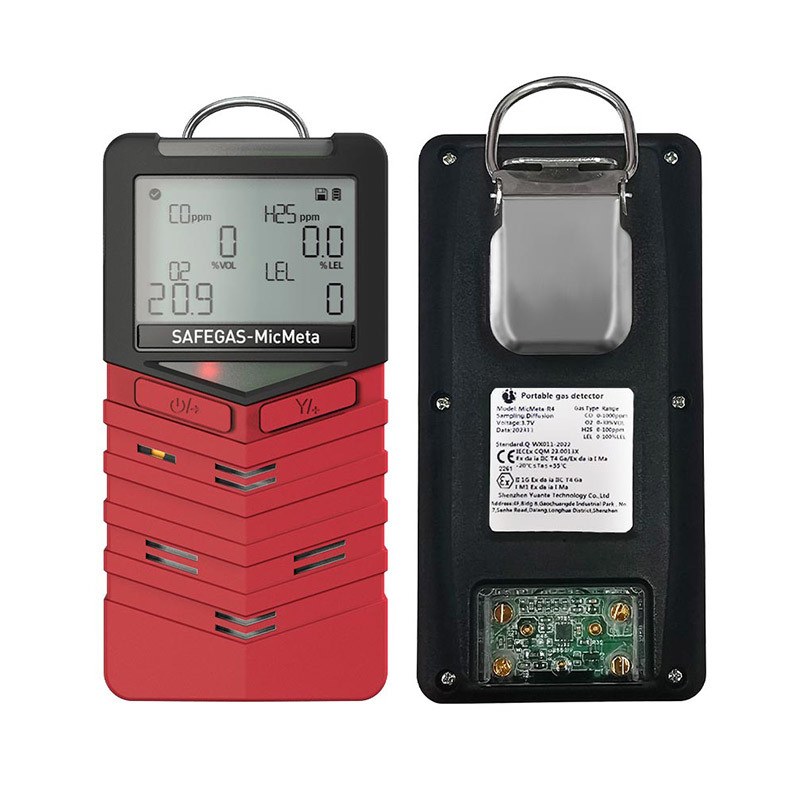

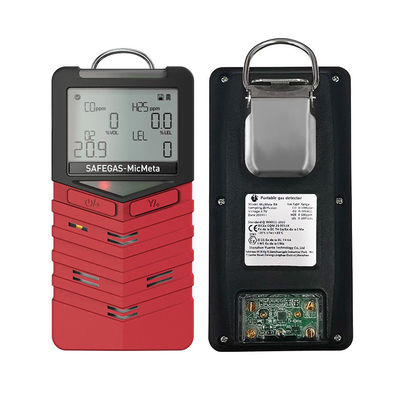

Gas Detector Multi Gas Dedected Segment Code LCD Display Automatically test and Calibrate After Power-on 0

Gas Detector Multi Gas Dedected Segment Code LCD Display Automatically test and Calibrate After Power-on 1

Gas Detector Multi Gas Dedected Segment Code LCD Display Automatically test and Calibrate After Power-on 2

Gas Detector Multi Gas Dedected Segment Code LCD Display Automatically test and Calibrate After Power-on 3
