| গ্যাসের ধরণ: | 5 গ্যাস পর্যন্ত, কাস্টমাইজ করা যাবে | কাজের পদ্ধতি: | ডিফিউশন স্যাম্পলিং |
|---|---|---|---|
| প্রতিক্রিয়া সময় (T90): | 30 সেকেন্ডেরও কম | ক্রমাঙ্কন প্ল্যাটফর্ম: | প্রতিদিনের ক্রমাঙ্কন এবং বাম্প পরীক্ষা করার জন্য al চ্ছিক ডকিং স্টেশন |
| ব্যাটারি: | 3.7V লিথিয়াম ব্যাটারি, রিচার্জেবল | ওয়্যারলেস ট্রান্সমিশন: | ঐচ্ছিক ব্লুটুথ বা লোরা ওয়্যারলেস ট্রান্সমিট |
| কাজের সময়: | 24 ঘন্টা | চার্জিং সময়: | 6 ঘন্টা কম |
| সাক্ষ্যদান: | ATEX, CN, IECEX | সুরক্ষা গ্রেড: | আইপি 66/আইপি 68 |
| ওজন (অভ্যন্তরীণ ব্যাটারি সহ): | 240 জি | ডেটা রেকর্ড: | 1000 সেট |
| ইভেন্ট রেকর্ড: | 100 সেট | ||
| বিশেষভাবে তুলে ধরা: | 24 Hours Working Time Multi Gas Detector,1000 Sets Data Record Gas Detection Instrument,100 Sets Events Record Portable Gas Analyzer |
||

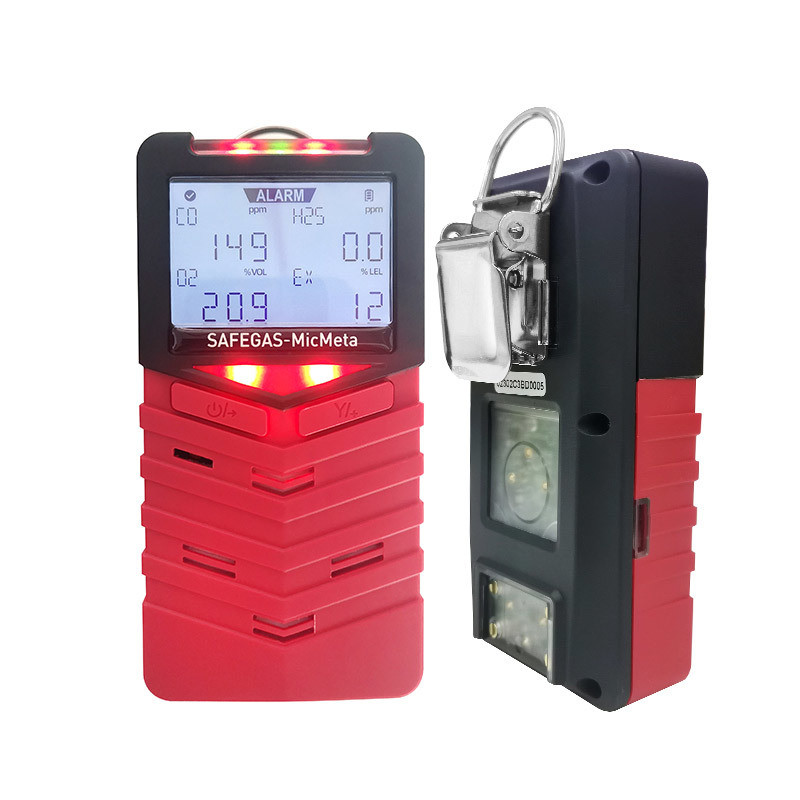

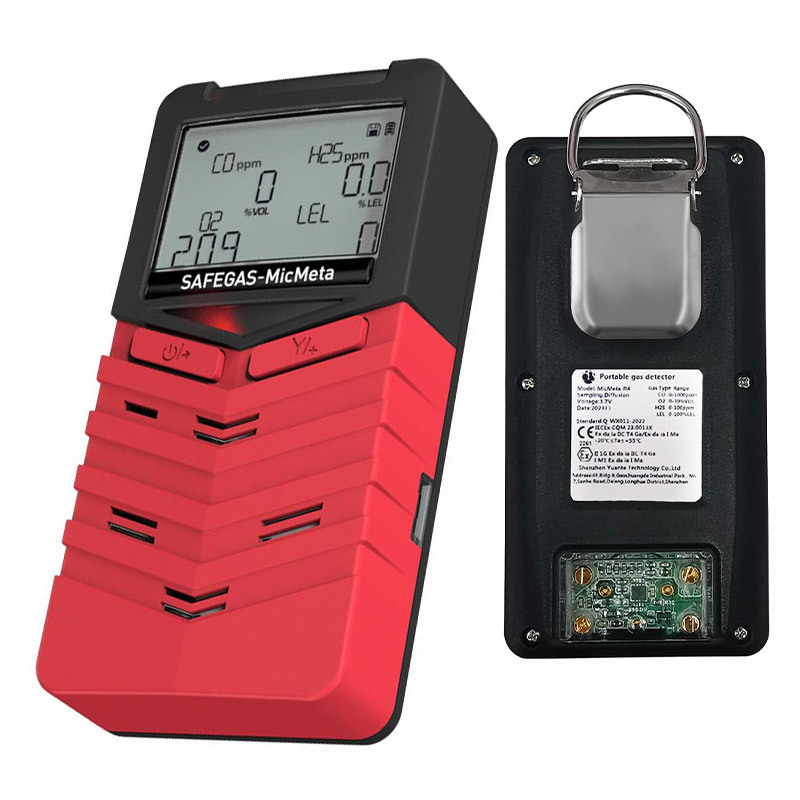

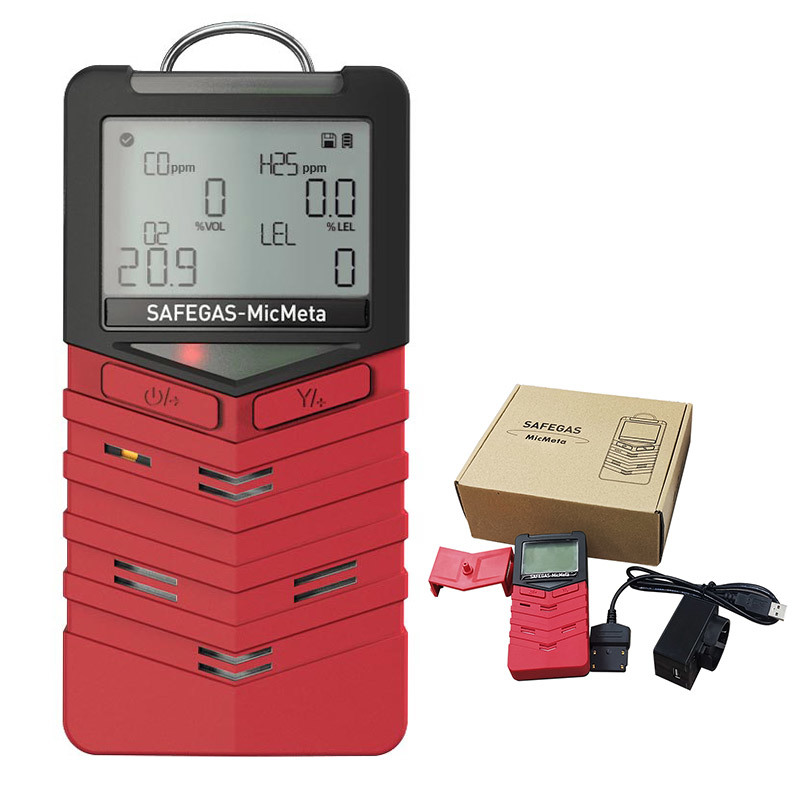

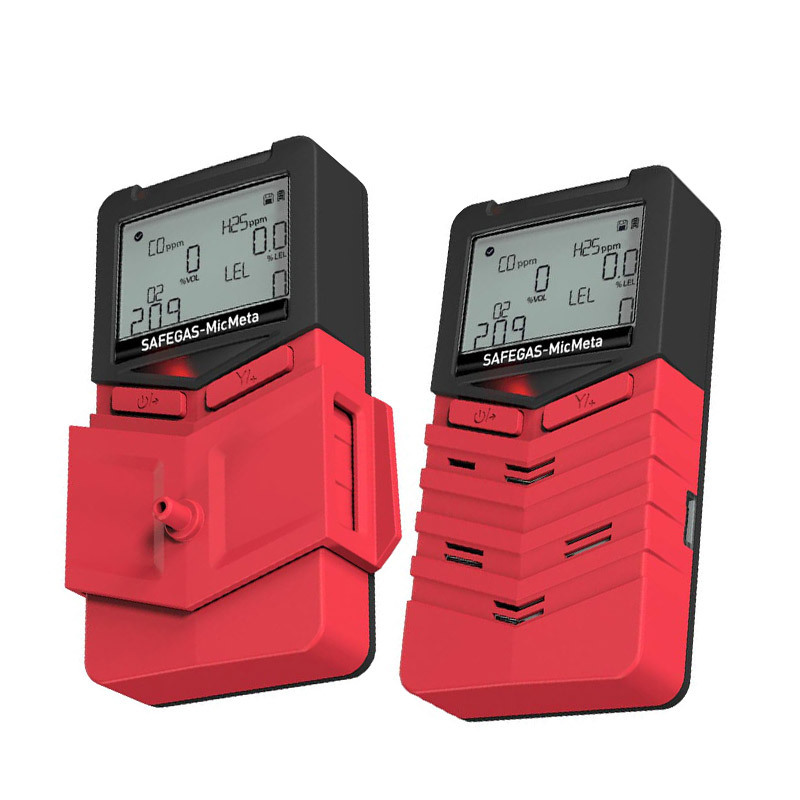

The Safegas Portable Multi Gas Detector is a lightweight, IECEX certified device with IP68 drop resistance featuring diffusion suction and a convenient back clip.
MicMeta is a multi-gas detector with IP66/IP68 protection that can detect 1-4 gases simultaneously. When configured for CO and H2S detection, it can monitor up to 5 gases concurrently.
This detector holds three explosion-proof certifications: IECEX, ATEX, and China Explosion-proof, with an explosion-proof level of Ex ia IICT4 Ga/Ex ia I Ma, making it suitable for use in Zone 0 and Zone 1 hazardous areas.
Features include an LCD screen with Chinese/English language support, two-level sound and light alarms with customizable settings, optional PC software for data download, and an optional docking station for simplified bump testing, calibration, configuration, and data recording.
| Specification | Details |
|---|---|
| Sampling Method | Diffusion suction |
| Gas Type | Customizable, detects up to 5 gases |
| Response Time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on sensor) |
| Display | Segment code LCD display |
| Alarm System | 95dB buzzer, vibration, flashing red bar, on-screen alarm status |
| Battery | 3.7V rechargeable lithium (2300mAh) |
| Working Time | 18h standby, <6h charging |
| Explosion-proof Grade | IECEx: Ex ia IIC T4 Ga, Ex ia I Ma ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma |
| Protection Grade | IP66/IP68 |
| Dimensions | 113*60*32mm (L*W*H) |
| Weight | 200g (with battery) |
