Handheld 100PPM Measure Range H2O2 Gas Detector for Disinfection and Medical Industry

বেসিক ইনফরমেশন
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: SAFEGAS
সাক্ষ্যদান: ATEX/EMC/IECEX
মডেল নম্বার: স্কাই 3000
ন্যূনতম চাহিদার পরিমাণ: 1
মূল্য: আলোচনাযোগ্য
প্যাকেজিং বিবরণ: অ্যালুমিনিয়াম স্যুটকেস
ডেলিভারি সময়: 3 কাজের দিন
পরিশোধের শর্ত: টি/টি, ওয়েস্টার্ন ইউনিয়ন
যোগানের ক্ষমতা: প্রতি মাসে 1000 টুকরা
বিস্তারিত তথ্য
গ্যাসের ধরন: H2O2 স্যাম্পলিং পদ্ধতি: ডিফিউশন বা পাম্প সাকশন
পরিমাপ পরিসীমা: 0-50, 100PPM রেজোলিউশন: 0.01 পিপিএম
সাক্ষ্যদান: CE,ATEX,IECEx,ISO ভাষা: চীনা/ইংরেজি(আরো ভাষা কাস্টমাইজ করা যেতে পারে)
এলার্ম: বুজার, LED এবং ভাইব্রেশন অ্যালার্ম শক্তি: 3.7V লিথিয়াম ব্যাটারি, রিচার্জেবল
কাজের সময়: ক্রমাগত পাম্পিং মোডে 15 ঘন্টার বেশি প্রতিক্রিয়া সময়: ≤30 সেকেন্ড
ডেটা রেকর্ড: 1 লক্ষ সেট ডেটা সংরক্ষণ করতে পারে একক প্যাকেজ আকার:: 34cmX24cmX14cm
একক মোট ওজন:: 1.64 কেজি

পণ্যের বর্ণনা

100PPM Measure Range Handheld H2O2 Gas Detector for Disinfection and Medical Industry
Gas Information

Hydrogen peroxide (H2O2) is widely used in medical disinfection, clinical chemistry, dyeing and bleaching, and food testing. Disinfection supply centers and operating room inspection departments require hydrogen peroxide (H2O2) low-temperature plasma sterilizers. During use, gas leaks may occur, and excessive residual disinfection concentrations can be harmful to human health. The United States typically sets the maximum allowable concentration at 1.4mg/m³ (approximately 1ppm), making hydrogen peroxide (H2O2) leak detection essential.

Product Description

SKY3000 Portable Gas Detector

The SKY3000 series is a high-performance portable gas detector capable of simultaneously detecting multiple gases (oxygen compounds, VOC, combustible gas, and toxic gas) with man-down alarm functionality. The device features user-friendly operations including one-key security detection, one-key storage, automatic screen rotation, and man-down alarm. Optional Bluetooth transmission allows safety personnel to access real-time data and alarm status.

The device holds international IECEX, ATEX explosion-proof certifications and Chinese explosion-proof certification. It has passed anti-static testing and achieves IP67 protection rating. With safer product design and modular construction for faster detection, plus compact ergonomic design for easy carrying, the instrument primarily operates in suction mode. If the air pump fails or during emergency situations, it automatically switches to diffusion sampling, enhancing protection levels.

The explosion-proof grade is Ex ia IIC T4 Ga, suitable for explosive gas mixture zones 0, 1, and 2 in factories with grades ⅡA, ⅡB, and ⅡC and temperature groups T1~T4.

Product Images


Handheld 100PPM Measure Range H2O2 Gas Detector for Disinfection and Medical Industry 0

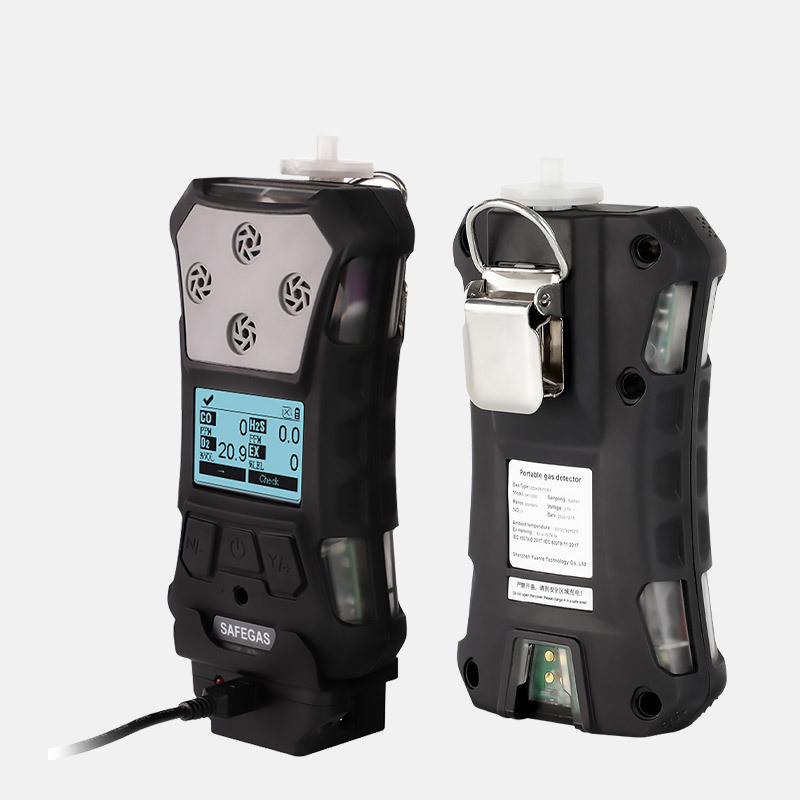

Handheld 100PPM Measure Range H2O2 Gas Detector for Disinfection and Medical Industry 1

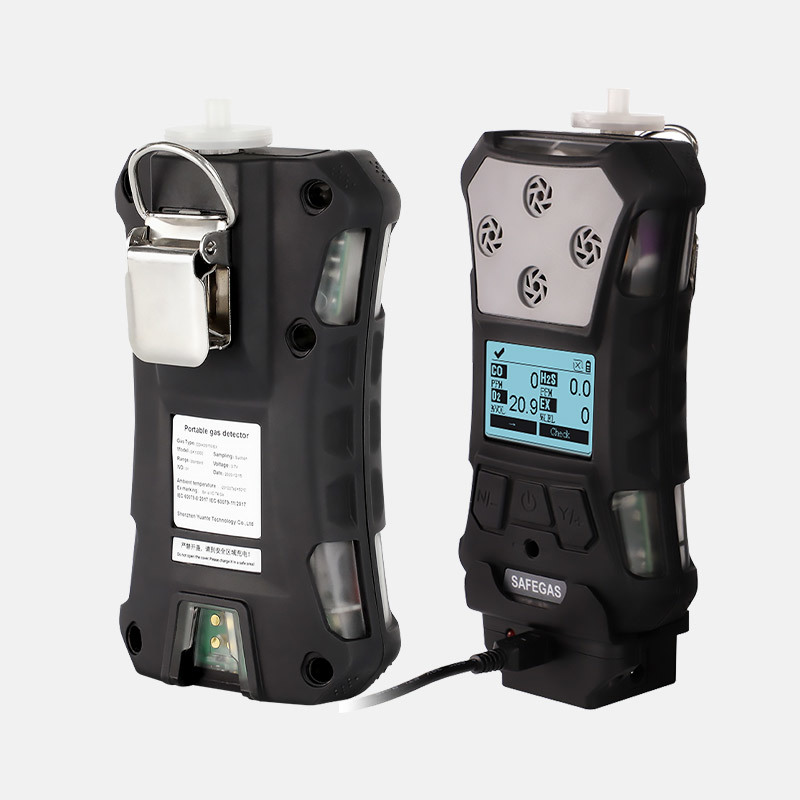

Handheld 100PPM Measure Range H2O2 Gas Detector for Disinfection and Medical Industry 2

Product Advantages
Rugged and Durable
  • Withstands 3-meter drops
  • IP67 protection rating
  • Passed EMC anti-static interference tests
  • Operates normally in walkie-talkie environments
Explosion-Proof Design
  • IECEX, ATEX, and Chinese explosion-proof certifications
  • Exia IICT4 Ga explosion-proof level
Multiple Security Protection
  • Man-down alarm for underground operator safety
  • Password protection prevents unauthorized parameter changes
  • Safety reminder with sound, light, and vibration alarms
Advanced Detection Capabilities
  • Simultaneous detection of 1-4 gases
  • Multiple numerical displays: real-time, TWA, STEL, MAX, MIN
  • Large screen with 180° automatic rotation
  • Built-in powerful sampling pump for fast detection
User-Friendly Operation
  • Intuitive user interface with easy interaction
  • Optional Bluetooth for real-time data transmission
  • One-key data export for analysis
  • Modifiable ID identification for instrument management
Technical Specifications
Parameter Specification
Sampling method Pump suction
Gas type H2O2
Measure range 0-50, 100PPM
Resolution 0.01PPM
Response time ≤10 seconds
Precision ≤±1%F.S
Language English (Other languages customizable)
Display Monochrome graphics (160 x 96), auto-flip screen
Data record 100,000 data sets, adjustable storage interval 5-3600 seconds
Alarm 95dB buzzer, vibration, flashing LED, screen indication
Battery 3.7V rechargeable lithium battery, 2200mAh
Working hours Over 15 hours continuous pumping
Explosion-proof grade IECEX/ATEX(II IG Ex ia IIC T4, CNEX:Ex ia IIC T4 Ga
Protection grade IP67/IP68
Working temperature -20ºC to +50ºC
Size 157×84.5×59.5mm (including accessories)
Weight 365g (including battery and accessories)
Standard Configuration
  • Gas detector - 1 piece
  • 12V/1A DC power adapter - 1 piece
  • USB cable - 1 piece
  • User manual - 1 piece
  • Warranty card - 1 piece
  • Filter - 1 piece
  • Aluminum suitcase - 1 piece
Why Choose Safegas?
  • R&D team experience: over 25 years
  • Company certification: ISO9001, ISO45001
  • Product certification: IECEx (the only one in China), ATEX, CE
  • Delivery: 5-7 days
  • Yearly capacity: 80,000 units
  • Service: Professional sales staff provide 7*24 hours service

Safegas focuses on environmental monitoring equipment design, production, and sales for 16 years. With gas detectors as core products, we provide complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

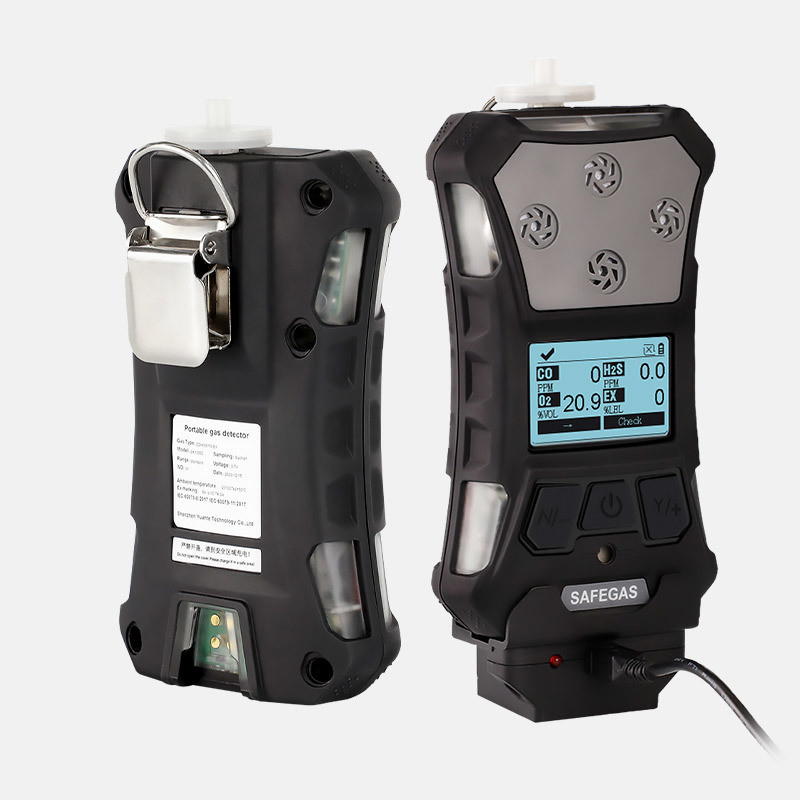

Handheld 100PPM Measure Range H2O2 Gas Detector for Disinfection and Medical Industry 3 Handheld 100PPM Measure Range H2O2 Gas Detector for Disinfection and Medical Industry 4 Handheld 100PPM Measure Range H2O2 Gas Detector for Disinfection and Medical Industry 5

Safegas maintains the management philosophy: "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." With friendly, open, and strict corporate culture, we've built strong management and R&D teams dedicated to customer-oriented service.

Through years of measurement experience and continuous technology development, Safegas products compete with international brands while meeting diverse customer demands through constant innovation and progress.
