| গ্যাস: | O3 | পরিমাপ পরিসীমা: | 0-10ppm |
|---|---|---|---|
| রেজোলিউশন: | 0.001 পিপিএম | সেন্সর টাইপ: | বৈদ্যুতিন রাসায়নিক |
| স্যাম্পলিং পদ্ধতি: | বিচ্ছুরণ | উপাদান: | ABS+ চামড়ার কেস |
| প্রদর্শন: | মনোক্রোম ডট ম্যাট্রিক্স 128*128 LCD গ্রাফিক ডিসপ্লে | অ্যালার্ম মোড: | শব্দ, আলো এবং কম্পন |
| ব্যাটারি: | 3.7V রিচার্জেবল লিথিয়াম ব্যাটারি, 2500mAh ক্ষমতা সহ | ইউনিট: | ppm, mg/m3, %VOL, %LEL |
| একক প্যাকেজ আকার:: | 131সেমি*83সেমি*35সেমি | ওজন:: | 240 গ্রাম |
| সুরক্ষা গ্রেড: | IP65 |

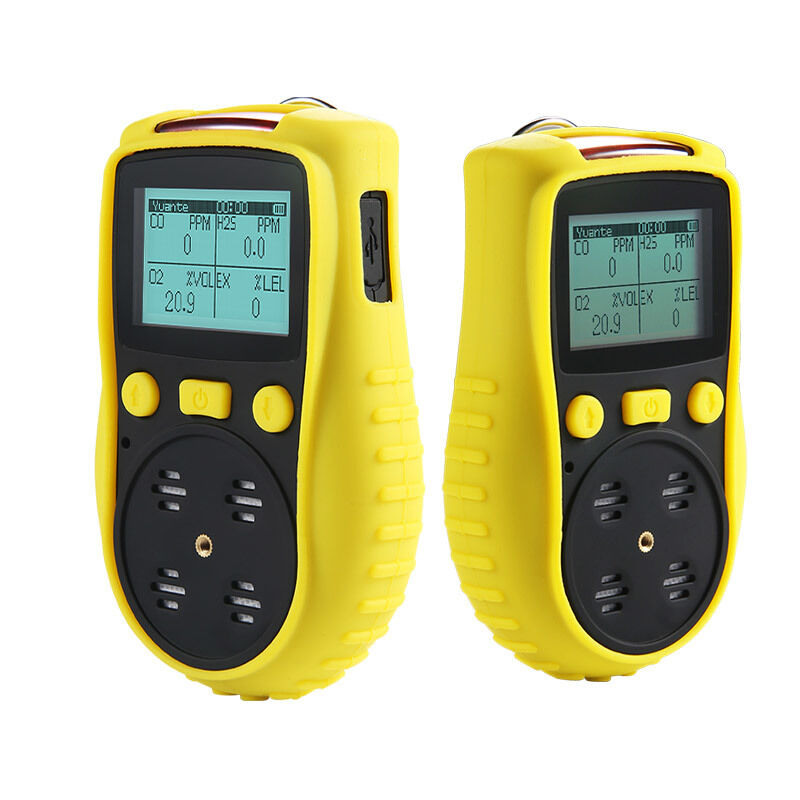

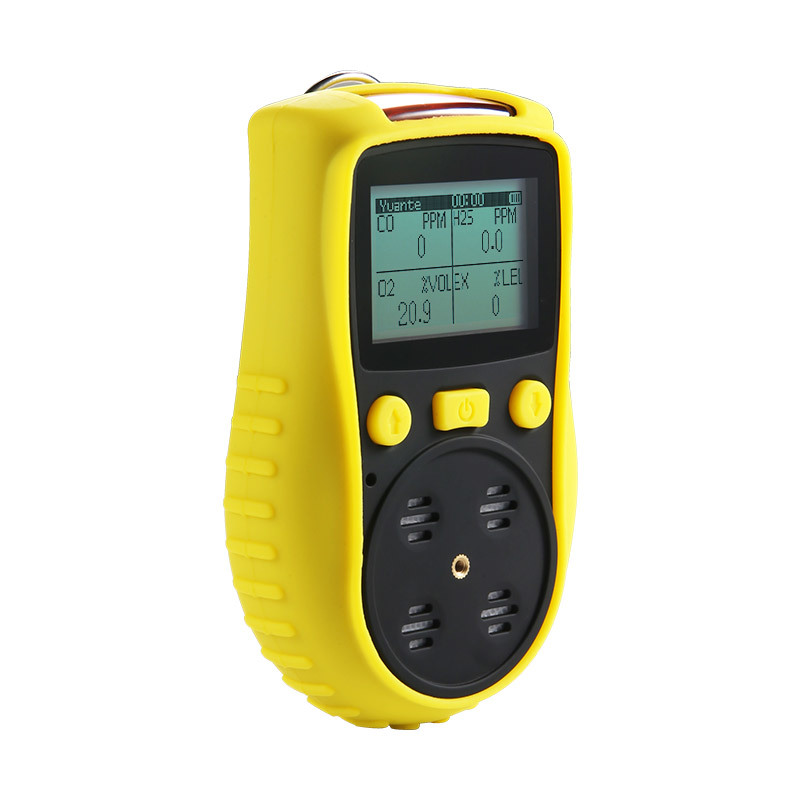

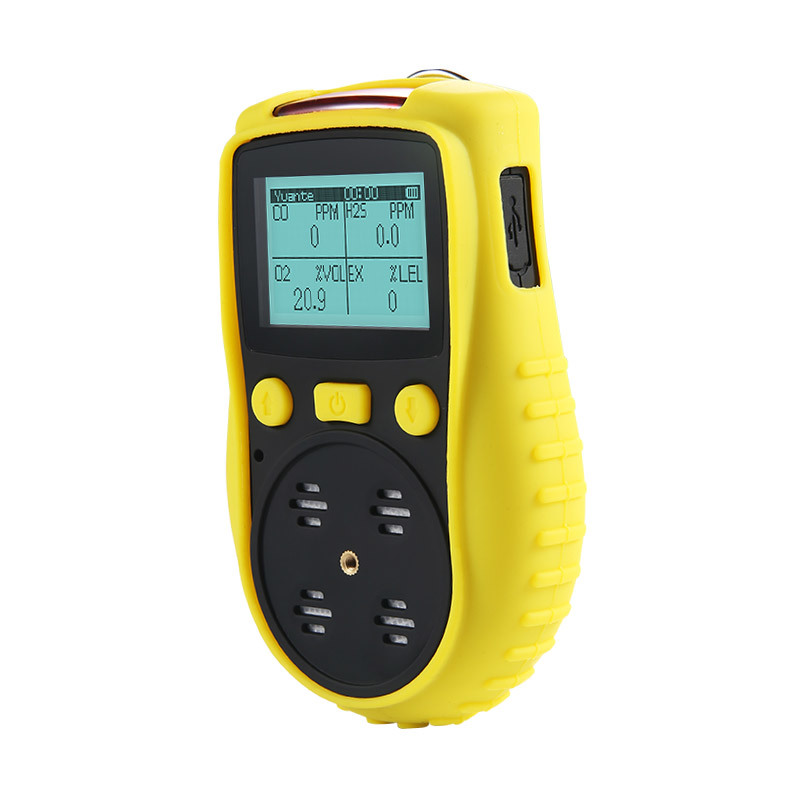

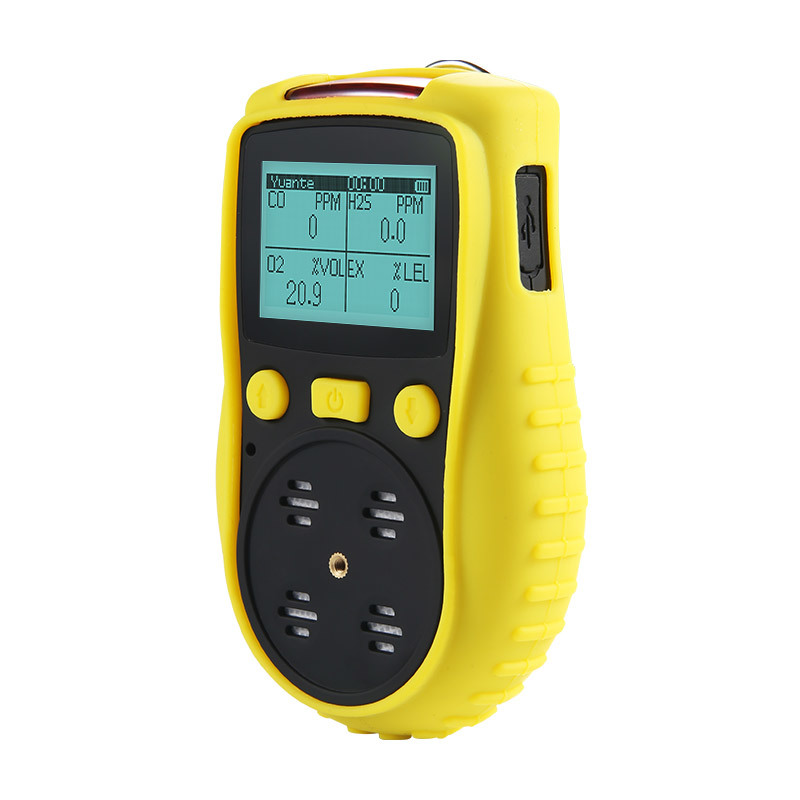

YT-1200H Portable Gas Detector
The YT-1200H Portable Gas Detector is a high-precision, compact instrument designed for industrial safety applications. Utilizing diffusion detection principles, this multi-gas detector offers reliable monitoring of toxic gases, flammable gases, and oxygen levels in hazardous environments.
The YT-1200H series represents a mini-sized, cost-effective portable gas detector with high accuracy. Designed for ease of operation with comprehensive functionality, it features a back clip and silicone protective case, making it suitable for various industrial situations.
| Parameter | Value |
|---|---|
| Gas Detected | Specified according to application |
| Detection Principle | Diffusion |
| Sensor Type | Specified according to application |
| Measuring Range | Specified according to application |
| Resolution | Specified according to application |
| Precision | <1-5% F.S. |
| Display | Monochrome dot matrix 128×128 LCD graphic display |
| Backlight | Settable time; auto-on during alarm |
| Data Logging | Optional: 100,000 readings (10-3600 sec interval) |
| Event Logging | 100 event records (standard, viewable on device) |
| Language | Chinese / English |
| Alarm Type | Sound, light, vibration |
| Battery | 3.7V rechargeable lithium battery, 2500mAh |
| Working Time | 14h continuous (4 gases); 200h (without LEL sensor) |
| Charger | Travel charger; charging time 4-6h |
| Explosion-Proof Grade | Ex ia IIC T4 |
| Protection Grade | IP65 |
| Working Temperature | 10°C - 50°C |
| Working Humidity | 15 - 95% RH |
| Housing Material | ABS + leather case |
| Dimensions (L × W × H) | 131 × 83 × 35 mm |
| Weight | 240g |
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Portable Detectors: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
Fixed Systems: YT-95H, YT-98H, YT-96H, SG100, SG200
Controllers: YT-1100H, YT-1600H, YT-1800H
Particle Counters: AQD5000, SKY6000-PM, SKY2000-PM
