Durable Portable H2S CL2 H2 EX CH4O CXHY O2 Gas Analyzer

For Chemical Plant Leakage Toxic And Combustible Gas Safety Inspection

Product Overview

The SKY8000 is a portable gas analysis instrument widely used in industrial waste gas, air pollution source emission detection, boiler flue gas, automobile exhaust gas, and indoor air analysis applications. This analytical instrument can flexibly detect 1-18 types of gases with 1-3 selectable modules. Each module corresponds to one pump, and the internal modular structure enables separate air intake for interfering gases, effectively avoiding cross-interference.

Features include a 3.5-inch high-definition IPS LCD color screen with 150-degree wide viewing angle, Chinese and English operation interface, fall alarm, password protection, and safety reminder functions. Optional high-temperature probe enables gas concentration monitoring in harsh high-temperature, high-humidity environments. The large-capacity lithium battery provides extended standby time, while the instrument casing is constructed from high-strength engineering materials with ergonomic design for practical operation.

Applications

Petroleum refining workshop toxic flammable gas leakage early warning
Sewage treatment plant H2S chlorine gas safety monitoring
Chemical raw material storage warehouse combustible gas detection
Natural gas pipeline maintenance multi-gas leakage sampling inspection
Pesticide production workshop harmful toxic gas concentration testing
Methanol chemical synthesis workshop CXHY gas explosion risk monitoring
And more industrial applications

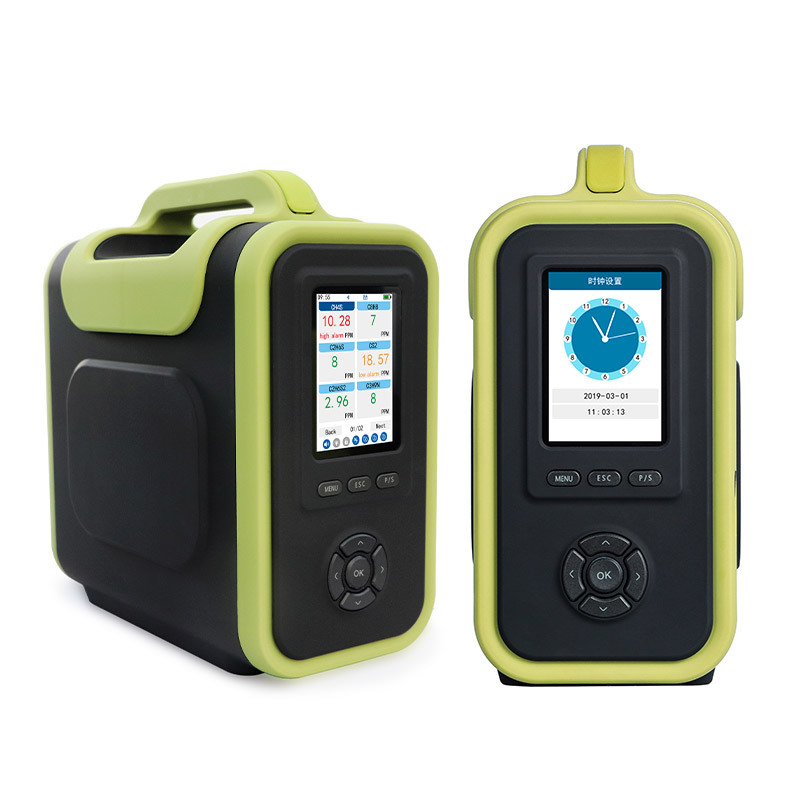

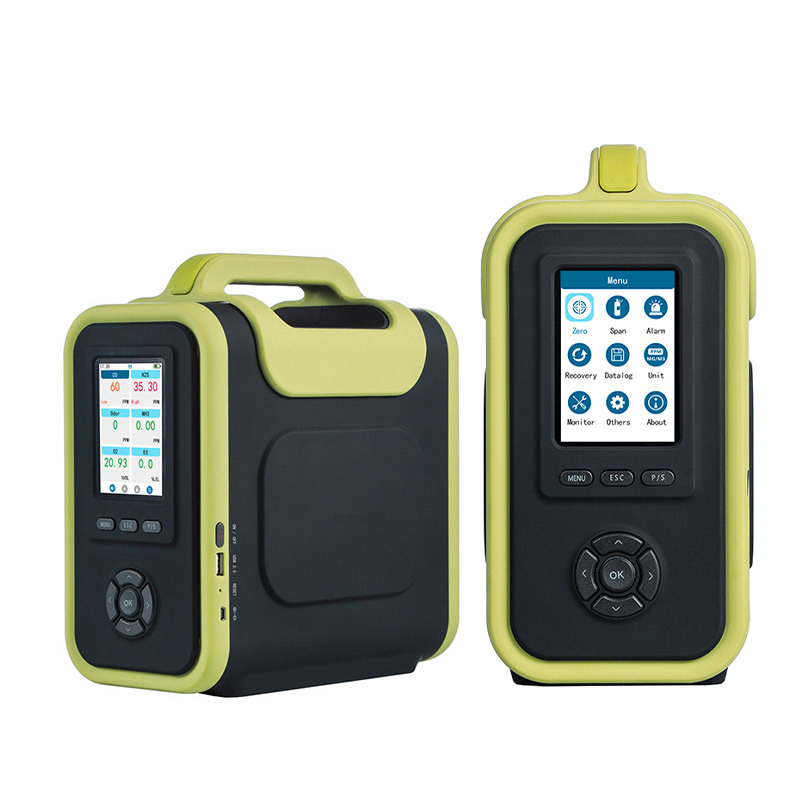

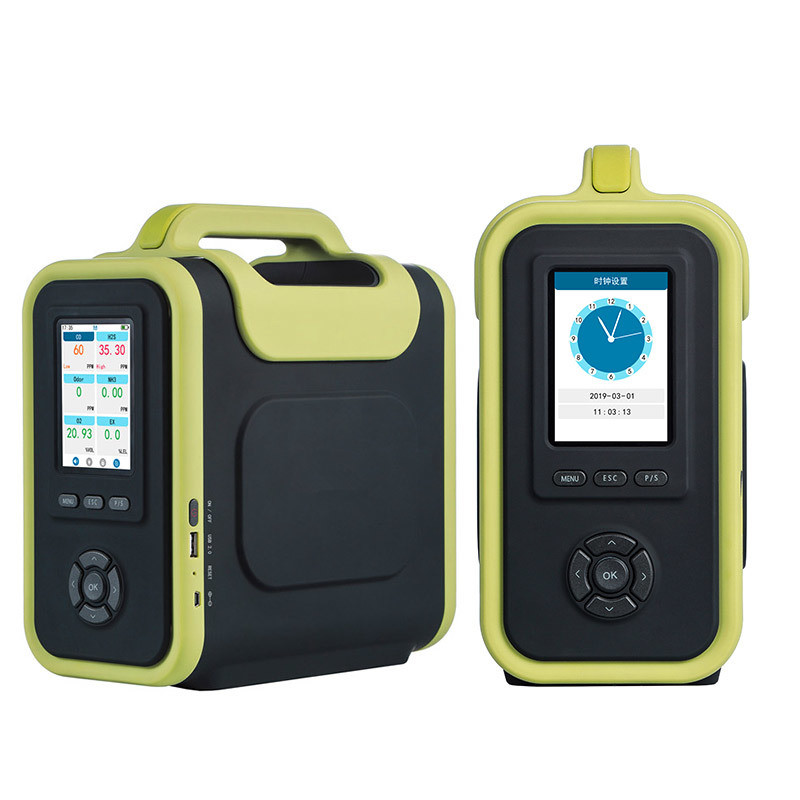

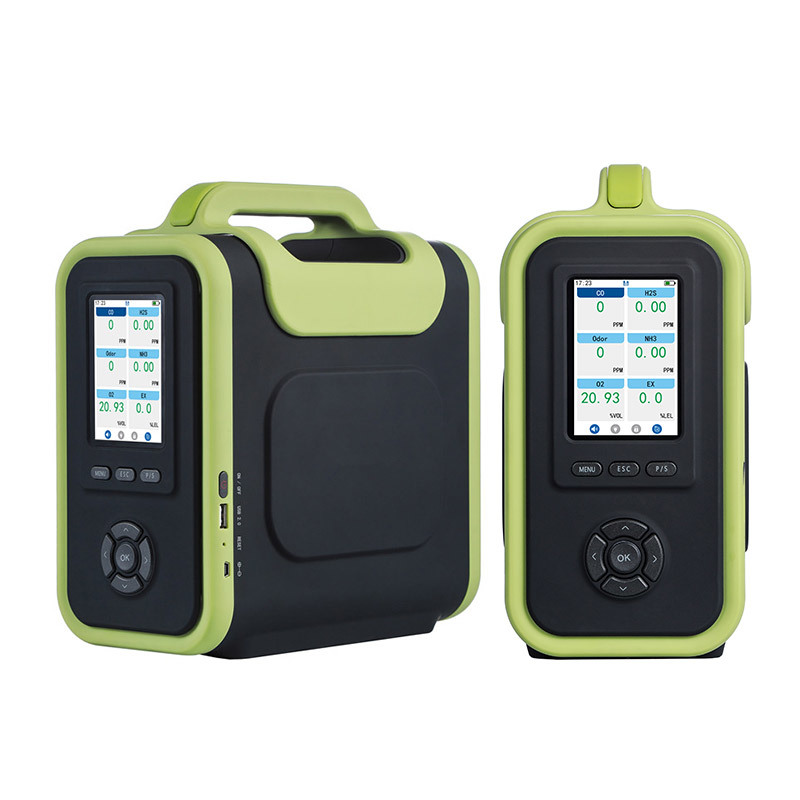

Product Images

Product Specifications

Sensors	Specified according to application
Gas Detected	H2S, CL2, H2, EX, CH4O, CXHY, O2
Measure Range	Specified according to application
Resolution	Specified according to application
Display	Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status
Alarm	Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Data Storage	Independent SD memory card, Max.32G, measurement data can be recorded automatically, customizable record time interval
Data Transmission and Download	RS485 signal output, USB interface data transmission, with upper computer software for downloading storage, analyzing and printing data
Print Function (Optional)	Optional with internal portable printer or external bluetooth printer
Print Content (Optional)	Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc.
Charger	Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer)
Language	Chinese/English
Wireless Network (Optional)	Bluetooth
Network Frequency	2.4G high frequency
Wireless Transmission Distance	Bluetooth is less than 10m
Probe Specifications	The smoke environment must be equipped with a high temperature probe gun, which can be resistant to high temperatures of 600°C or 1000°C. The probe length can be 0.3m, 0.7m and 1m.

Product Advantages

Exterior Design & Display

Convenient carrying handle design with heavy, stylish body using aviation wear-resistant materials. Features a 3.5-inch high-definition color screen with high resolution and wide viewing angle. Beautiful and user-friendly interface with intuitive interactive operation.

Modular Internal Structure

Industry-first analytical instrument with patented modular internal structure. Up to three detection modules, each capable of detecting up to six gases. Independent modules with separate air intake effectively avoid cross-interference between gases for more accurate detection.

High Customizability

Up to 18 sensors can be selected to meet requirements for simultaneous detection and analysis of 18 gases. Customizable flue gas measurement capable of detecting up to 9 gases simultaneously.

Flexible Multi-Pump System

Air supply system with up to three pumps allows arbitrary pump switching. Blocks cross-gas loss to relevant sensors, prolonging sensor service life. Adjustable pump flow rate across ten different gears to meet various space environments and ensure accuracy.

Multiple Display Modes

Supports gas concentration data display and real-time curve display modes with arbitrary switching capability.

Comprehensive Data Storage

Standard 8G SD memory card with continuous storage up to seven years at 5-second intervals. Historical data and curves viewable directly on instrument or exportable via USB flash drive. Stores real-time data values, alarm values, maximum and minimum values, viewable by date.

Multiple Security Protection

Fall alarm function for underground worker safety (optional). Password protection prevents unauthorized parameter modification. Safety alert feature enhances operator comfort. High and low alarm lock function captures sudden gas concentration changes.

User-Friendly Features

Supports PPM/mg/m³ gas unit switching with automatic concentration conversion. Individual channel sensor factory reset capability. Chinese/English language switching. Timed shutdown function with intelligent settings. Sensor overload automatic protection. Built-in thermal printer for one-click data printing (optional). Wireless communication module for real-time monitoring via computer web client and mobile app (optional). Optional high-temperature sampling probe up to 1200°C (optional).

Standard Accessories

One User manual
One certificate/warranty card
One 8G large capacity SD card (more capacity needs to be customized)
One charging adapter
One water trap filter
One intake sampling probe
One 1000mm hose
One non-toxic, odorless, explosion-proof, waterproof, heat-resistant, high-low temperature resistant, corrosion-resistant suitcase

Optional Accessories

Printer (built-in thermal printer) one
A set of high temperature flue gas detectors

Why Choose Safegas?

R&D Team Experience: Over 25 years
Company Certification: ISO9001, ISO45001
Product Certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Yearly Capacity: 80,000 units
Service: Professional sales staff provide 7*24 hours service

Safegas is a company that focuses on the design, production and sales of environmental monitoring equipment and systems for 16 years. With "gas detector" as the core product, we have complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.

Through 16 years of rapid development, Safegas has become an influential supplier for environmental monitoring equipment and systems in domestic and overseas markets. Our management philosophy emphasizes "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." With friendly, open, and strict corporate culture and standardized management, Safegas gathers talented professionals who cooperate effectively in product development, production, and maintenance.

Depending on years of measurement experience and Safegas solutions, through independent research and development, cooperative development and learning overseas latest technology, Safegas products are domestically advanced and can compete with overseas brands. We continuously seek development and progress to meet diversified customer demands.

উৎপত্তি স্থল:	চীন
পরিচিতিমুলক নাম:	SAFEGAS
সাক্ষ্যদান:	Chinese EX certificate
মডেল নম্বার:	স্কাই 8000

ন্যূনতম চাহিদার পরিমাণ:	1
মূল্য:	আলোচনাযোগ্য
প্যাকেজিং বিবরণ:	শক্ত কাগজ
ডেলিভারি সময়:	10 কাজের দিন
পরিশোধের শর্ত:	টি/টি, ওয়েস্টার্ন ইউনিয়ন
যোগানের ক্ষমতা:	প্রতি মাসে 300 টুকরা

তাপমাত্রা:	-20℃~+50℃	ওয়ারেন্টি:	12 মাস
আর্দ্রতা:	0~95% RH (কোন ঘনীভবন নয়)	রঙ:	সবুজের সাথে কালো
শক্তি:	লিথিয়াম পলিমার ব্যাটারি	তদন্ত স্পেসিফিকেশন:	প্রয়োজনীয়, তাপমাত্রা এবং তদন্ত দৈর্ঘ্য অনুযায়ী নির্বাচন করুন
স্যাম্পলিং পদ্ধতি:	পাম্পিং সাকশন	ওজন:	3700 জি
গ্যাস সনাক্ত করা:	H2S CL2 H2 EX CH4O CXHY O2	মুদ্রণ ফাংশন:	অভ্যন্তরীণ পোর্টেবল প্রিন্টার বা বাহ্যিক ব্লুটুথ প্রিন্টারের সাথে al চ্ছিক

Durable Portable H2S CL2 H2 EX CH4O CXHY O2 Gas Analyzer With Modular Internal Structure And 3.5-inch High-Definition IPS LCD
